1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway

    Buy cheap 1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway from wholesalers

    Buy cheap 1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway from wholesalers
    • Buy cheap 1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway from wholesalers
    • Buy cheap 1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway from wholesalers
    • Buy cheap 1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway from wholesalers

    1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway

    Ask Lasest Price
    Brand Name : ODM/OEM
    Model Number : ZT-RB500
    Certification : CE/FCC/RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000pcs/month
    Delivery Time : 25-35 work days
    • Product Details
    • Company Profile

    1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway

    1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway


    Gigabit AC Core Gateway Wireless AP Controller Commercial Wired Router Multi-WAN Access Gateway


    Product Description:

    ZT-RB500 provides a very convenient and comprehensive network management function, supports URL filtering and MAC address filtering and other functions, supports QoS bandwidth control function, can effectively allocate the download rate of the client; supports wireless data encryption, which can ensure the safety of data in wireless network transmission .

    ZT-RB500 has good signal, high transmission rate and stable performance. It is the best choice for families to realize high-speed wireless Internet access.


    Product Features:

    • Provide 1 10/100/1000M Ethernet (WAN) interface, which can be connected to XDSL modem/Cable modem/Ethernet/GPON/EPON/XPON;
    • Provide 4 10/100/1000M Ethernet (LAN) interfaces for connection in the local area network;
    • The networking mode supports static IP, dynamic IP, PPPOE dialing
    • Adopt Roaming technology to ensure efficient wireless connection;
    • Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
    • Built-in DHCP server, and static address assignment can be performed at the same time;
    • Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
    • Built-in firewall function, supporting domain name filtering and MAC address filtering;
    • Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
    • Support dynamic DNS function, which can provide domain name service for dynamic IP address;
    • Built-in static routing function, can build special network topology according to needs;
    • Supports access control based on MAC address, which can effectively control the access rights of intranet users;
    • Full English configuration interface, equipped with a simple installation wizard (Wizard).
    • Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;

    ModelZT-RB500

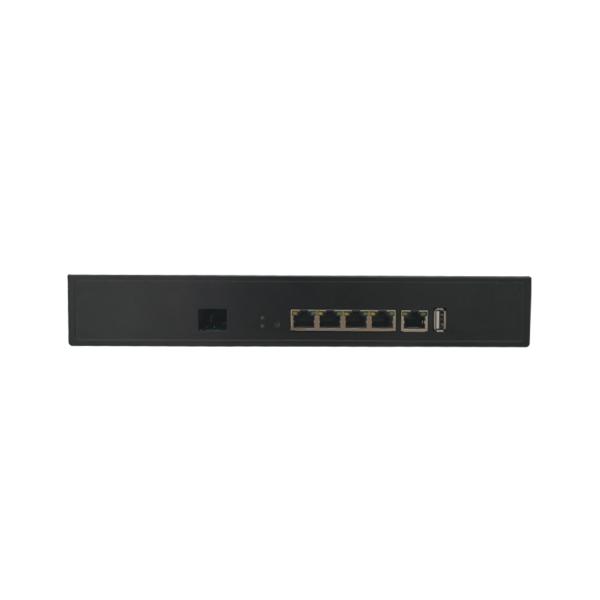

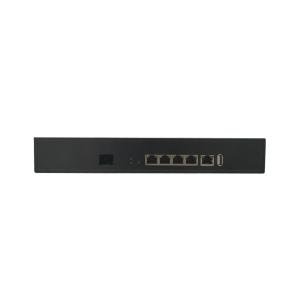

    Appearance
    Hardware specifications
    ChipsetMT7621AT
    SPI Flash16Mbyte
    SDRam128Mbyte
    PortsWAN: 1 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
    LAN: 4 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
    Reset: 1x RESET Key
    USB:1 x USB3.0
    LEDPower,Internet,WAN,LAN1,LAN2,LAN3,LAN4
    ColourBlack
    Dimensions (L x W x H)200*300*30
    Net weight1.75kg
    Gross weight1.85kg
    Electrical Specifications
    Power input voltage12V 1A
    Maximum power consumption<12W
    Power plug specificationsChoose according to the destination country
    Business specifications
    Networking methodPPPOE dial-up, static IP, dynamic IP
    Operating modeRouter mode, access point mode, repeater bridge mode, repeater mode
    Port transmission rate10/100/1000M
    Network protocol:IEEE 802.3, IEEE 802.3u
    WEB languageEnglsh
    Environmental specifications
    Working temperature0℃~40℃
    Working environment humidity10%~90% RH Non-condensing
    Storage temperature-10℃~70℃
    Storage environment humidity5%~90% RH Non-condensing
    Certified product
    3C certificationPassed, not certified;
    CE certificationPassed, not certified;
    FCC certificationPassed, not certified
    RoHS certificationPassed, not certified;
    Other certificationsNO;
    Quality 1000Mbps AC Wireless Gateway Wired Router Multi WAN Access Gateway for sale
